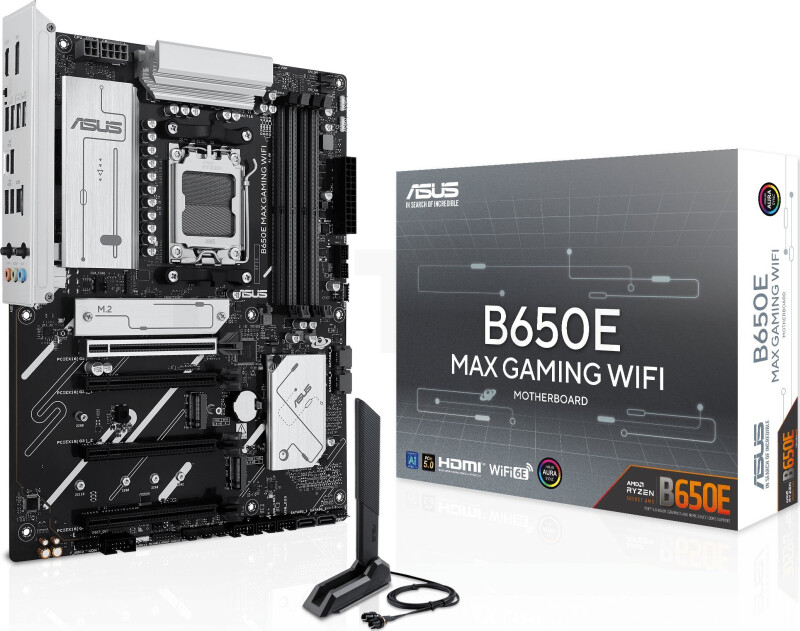

Материнская плата Asus B650E MAX GAMING WIFI

Цена без НДС: €163.63

€197.99

Наличие товара

Товар доступен на складе у поставщика

5-7 дней

4 шт.

€197.99

Информация

Описание продукта: ASUS B650E MAX GAMING WIFI - motherboard - ATX - Socket AM5 - AMD B650
Тип продукта: Motherboard - ATX
Chipset Type: AMD B650
Processor Socket: 1 x Socket AM5
Compatible Processors: Ryzen (supports Ryzen 7000/8000/9000 Series)
Max RAM Size: 256 GB
RAM Supported: 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Storage Ports: 4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports: 1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)
Audio: High Definition Audio (7.1-channel)
LAN: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Гарантия

24 месяца, если иное не предусмотрено законом.

Материнская плата Asus B650E MAX GAMING WIFI

€197.99

Генеральный

Тип продукта:

Motherboard - ATX

Chipset Type:

AMD B650

Processor Socket:

Socket AM5

Max Processors Qty:

Compatible Processors:

Ryzen (supports Ryzen 7000/8000/9000 Series)

Supported RAM

Max Size:

256 GB

Технология:

DDR5

Bus Clock:

4000 MHz (O.C.)

Supported RAM Integrity Check:

Non-ECC, on-die ECC

Registered or Buffered:

Unbuffered

Особенности:

Dual channel memory architecture, AMD EXPO technology

Audio

Тип:

High Definition Audio (7.1-channel)

Соответствующие стандарты:

High Definition Audio

LAN

Network Interfaces:

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Expansion / Connectivity

Expansion Slots:

1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces:

SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces:

1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 2 3 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 2 x aerial

Internal Interfaces:

2 x USB 2.0 - header 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x Thunderbolt - header 1 x serial - header

Power Connectors:

24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector

Features

BIOS Type:

AMI

Sleep / Wake Up:

Wake on LAN (WOL), wake on PME

Hardware Features:

ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, overvoltage protection, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink design, M.2 heatsink, 8+2+1 Phase Power Design
