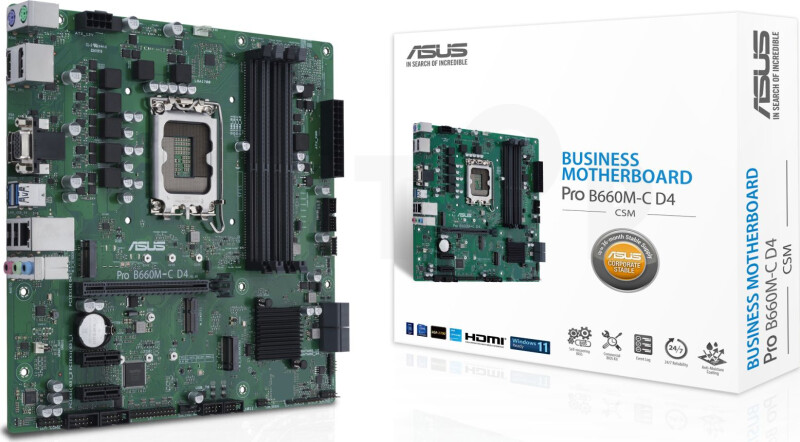

Asus PRO B660M-C D4-CSM mātesplate

Cena bez PVN: €120.45

€145.75

Preces pieejamība

Prece ir pieejama piegādātāja noliktavā

5-7 dienas

3 gab.

Dalīties:

€145.75

Pamatinformācija

Produkta apraksts: ASUS PRO B660M-C D4-CSM - motherboard - micro ATX - LGA1700 Socket - B660
Produkta veids: Motherboard - micro ATX
Chipset Type: Intel B660
Processor Socket: 1 x LGA1700 Socket
Compatible Processors: (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size: 128 GB
RAM Supported: 4 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports: 4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports: 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio: HD Audio (8-channel)
LAN: Gigabit Ethernet

Garantija

24 mēneši, ja likumā nav noteikts citādi.

Asus PRO B660M-C D4-CSM mātesplate

€145.75

Vispārējais

Produkta veids:

Motherboard - micro ATX

Chipset Type:

Intel B660

Processor Socket:

LGA1700 Socket

Max Processors Qty:

Compatible Processors:

(supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size:

128 GB

Tehnoloģija:

DDR4

Bus Clock:

2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.)

Supported RAM Integrity Check:

Non-ECC

Registered or Buffered:

Unbuffered

Iespējas:

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Tips:

HD Audio (8-channel)

Audio Codec:

Realtek ALC897

Atbilstības standarti:

High Definition Audio

LAN

Network Interfaces:

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots:

1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

Storage Interfaces:

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2

RAID Features:

Intel Rapid Storage Technology

Interfaces:

1 x HDMI 2 x DisplayPort 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 mouse

Internal Interfaces:

4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 2 x serial - header 1 x parallel - header 1 x speaker - header

Power Connectors:

4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

Sleep / Wake Up:

Wake on LAN (WOL), wake on PME

Hardware Features:

Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS Control Center Express (ACC Express), Q-LED Core
